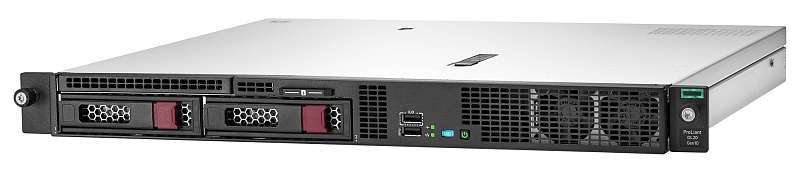

Сервер HPE DL20 Gen10 4SFF P06479-B21
Запросить сертификат
Прямой импорт оборудованияиз Китая и ОАЭ без посредников
Почему нет цен?
Уточнить цену
Гарантия до 5 лет
Диагностика перед отправкой
С нами выгодно и удобно!
- Поддержка персонального менеджера
- Партнёрские скидки до 70%
- Онлайн-кабинет гарантийного сервиса
Как купить?
Раз, два и все делаРассчитаем стоимость
Присылайте спецификацию для подбора и расчета стоимости оборудования
Привезём и подключим
Подключим и настроим оборудование в вашем офисе или ЦОДе
Характеристики
Комплектующие для сервера HPE ProLiant DL20 Gen10
Соберите свою конфигурацию
Отсрочка платежа
В зависимости от суммы поставляемого товара можем предоставить отсрочку платежа на срок от 5 до 90 дней. Условия отсрочки платежа рассматриваются индивидуально. Подробную информацию уточняйте у вашего менеджера.
Первый платеж
Второй платеж
Первый платеж
Второй платеж
Первый платеж
Второй платеж
Описание
P06479-B21 is the HPE ProLiant DL20 Gen10 E-2134 3.5GHz 4-core 1P 16GB-U 4SFF 500W PS Solution Server. The dense and compact HPE ProLiant DL20 Gen10 Server powered by Intel® Xeon® E Processor, Pentium and Core i3 processors provides a unique blend of enterprise class capabilities & value. It offers outstanding configuration flexibility to cater to a wide variety of business requirements at an affordable price point. Deploy this dense platform for diverse workloads in space constrained environments and maintain it with ease by automating the most essential server lifecycle management tasks with HPE iLO 5.
Quick Spec
Table 1 shows the quick spec.
| SKU Number | P06479-B21 |
| Model Name | HPE ProLiant DL20 Gen10 E-2134 3.5GHz 4-core 1P 16GB-U 4SFF 500W PS Solution Server |
| Processor | Intel® Xeon® E-2134 |
| Number of Processors | 1 |
| Memory | 16GB (1x16GB UDIMMs, 2666 MHz) |
| Network Controller | HPE embedded 1Gb 2-port 332i network Adapter |
| Storage Controller | Embedded 14-port S100i NOTE: SATA only |
| Hard Drive | None ship standard |
| Internal Storage | 4 SFF HDD Bays |
| Optical Drive Bay | 1; (Optional: DVD-ROM, DVD-RW) |
| Optical Drive | None |
| PCI-Express Slots | 2 PCIe 3.0 slots |
| Power Supply | (1) HPE 500W Redundant Power Supply |
| Fans | 3 non hot plug, non-redundant |
Product Details

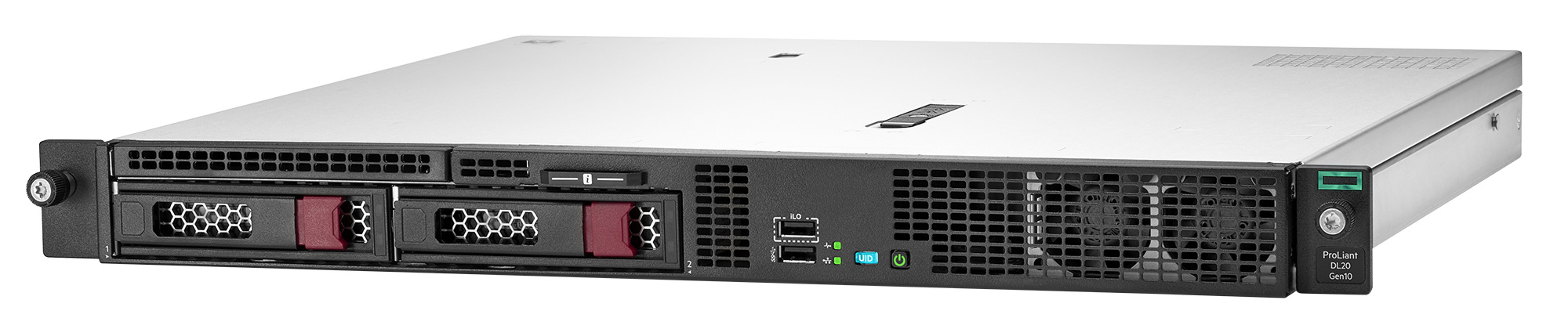

Figure 1 shows the HPE DL20 Gen10 4(+2) SFF front panel.
Note:
| ? | Access Panel | ? | UID LED |
| ? | 2 SFF hot plug drive bays (optional) | ? | NIC Status LED |
| ? | Serial number/iLO information pull tab | ? | USB 3.0 Port |
| ? | Health LED | ? | iLO Service Port (USB) |
| ? | System Power LED | ? | 4 SFF hot plug drive bays |
Figure 2 shows the HPE DL20 Gen10 rear panel.
Note:
| ? | Slot 1 PCIe 3.0 | ? | Two USB 3.0 Ports |
| ? | Slot 2 PCIe 3.0 | ? | NIC Port (1Gb) |
| ? | Option: Serial Port | ? | NIC port (1Gb) /iLo port |
| ? | 290W Non hotplug Power Supply | ? | VGA port |
| ? | UID LED | ? | Option: Dedicated iLO Management Port |
Options
Table 2 recommends the optional accessories.
| Model | Description |
| HPE DL20 Gen10 290W FIO Power Supply Unit Kit | |
| HPE 500W FS Plat Ht Plg LH Pwr Sply Kit | |
| HPE 800W FS 48VDC Ht Plg LH Pwr Sply Kit | |
| HPE DL20 Gen10 RPS Enablement FIO Kit | |
| HPE DL20 Gen10 x8x16 FlexibleLOM Riser Kit | |
| HPE DL20 Gen10 PCIe Low Profile Riser Kit | |
| HPE 2.4TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty 512e Digitally Signed Firmware HDD | |
| HPE 1.8TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty 512e Digitally Signed Firmware HDD | |
| HPE 1.2TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD | |
| HPE 600GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD | |
| HPE 300GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD | |
| HPE 900GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD | |
| HPE 600GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD | |
| HPE 300GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD | |
| HPE 900GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty 512e Digitally Signed Firmware HDD |
Compare to Similar Items
Table 3 shows the comparison.
| SKU Number | P06479-B21 | ||
| Model Name | HPE ProLiant DL20 Gen10 E-2134 3.5GHz 4-core 1P 16GB-U 4SFF 500W PS Solution Server | HPE ProLiant DL20 Gen10 E-2124 3.3GHz 4-core 1P 16GB-U 2LFF 290W PS Perf Server | HPE ProLiant DL20 Gen10 E-2136 3.3GHz 6-core 1P 16GB-U 4SFF 500W PS Perf Server |
| Processor | Intel® Xeon® E-2134 | Intel® Xeon® E-2124 | Intel® Xeon® E-2136 |
| Number of Processors | 1 | 1 | 1 |
| Memory | 16GB (1x16GB UDIMMs, 2666 MHz) | 16GB (1x16GB UDIMM, 2666 MHz) | 16GB (1x16GB UDIMM, 2666 MHz) |
| Network Controller | HPE embedded 1Gb 2-port 332i network Adapter | HPE embedded 1Gb 2-port 332i network Adapter | HPE embedded 1Gb 2-port 332i network Adapter |
| Storage Controller | Embedded 14-port S100i NOTE: SATA only | Embedded 14-port S100i NOTE: SATA only | Embedded 14-port S100i NOTE: SATA only |
| Hard Drive | None ship standard | None ship standard | None ship standard |
| Internal Storage | 4 SFF HDD Bays | 2 LFF HDD Bays (Hot Plug) | 4 SFF HDD Bays (Hot Plug) |
| Optical Drive Bay | 1; (Optional: DVD-ROM, DVD-RW) | 1; (Optional: DVD-ROM, DVD-RW) | 1; (Optional: DVD-ROM, DVD-RW) |
| Optical Drive | None | None | None |
| PCI-Express Slots | 2 PCIe 3.0 slots | 2 PCIe 3.0 slots | 2 PCIe 3.0 slots |
| Power Supply | (1) HPE 500W Redundant Power Supply | (1) 290W Non Hot Plug Power Supply | 1 x 500W |
| Fans | 3 non hot plug, non-redundant | 3 non hot plug, non-redundant | 3 non hot plug, non-redundant |
