Описание

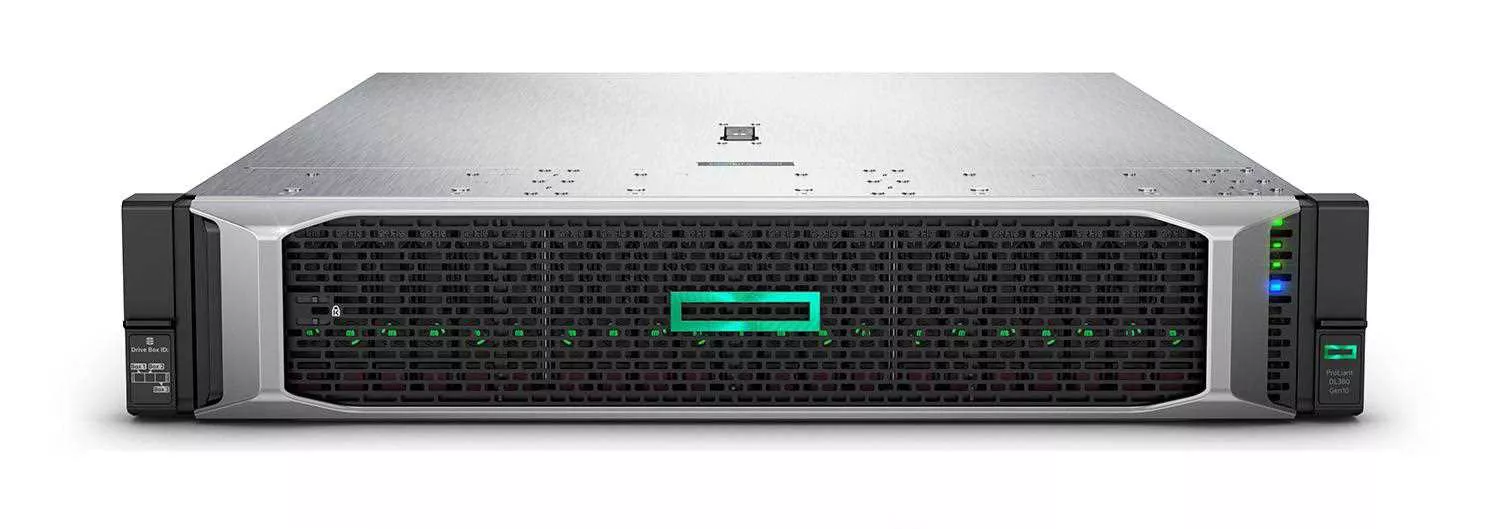

P19720-B21 is an HPE ProLiant DL380 Gen10 8-SFF NC CTO server. Adaptable for diverse workloads and environments, the secure 2P 2U HPE ProLiant DL380 Gen10 delivers world-class performance with the right balance of expandability and scalability. Designed for supreme versatility and resiliency while being backed by a comprehensive warranty make it ideal for multiple environments from Containers to Cloud to Big Data. Standardize on the industry’s most trusted compute platform.
Quick Spec
Table 1 shows the quick spec of DL380 Gen10 8-SFF NC CTO server.
| Part Number | P19720-B21 |
| Description | HPE ProLiant DL380 Gen10 8-SFF NC CTO server |
| Form Factor | 2U rack |
| Processors | Up to 2 Intel Xeon processors |
| Chipset | Intel C621 Chipset |
| Memory Type | HPE DDR4 SmartMemory, Registered (RDIMM), Load Reduced (LRDIMM) |
| Memory Maximum capacity | LRDIMM :3.0 TB, 24 x 128 GB LRDIMM @ 2933 MT/s RDIMM: 1.54 TB, 24 x 64 GB RDIMM @ 2933 MT/s Intel Optane Persistent Memory for HPE: 6.0 TB, 12 X 512 GB Memory Modules @ 2666 MT/s HPE NVDIMMs: 192 GB, 12 x 16 GB NVDIMM @ 2666 MT/s |
Product Details
Figure 1 shows the Front View – SFF chassis with optional Universal Media bay with optical and 2 NVME plus 16 NVMe shown.
Note:
| ? | Quick removal access panel |
| ? | Optional Universal Media bay. 2 USB 2.0 and Display port standard (8 SFF bay or 6 SFF+2NVMe or 8NVMe optional) |
| ? | Optional Optical drive. Requires Universal Media bay |
| ? | Optional USB 2.0 (via Universal Media Bay) |
| ? | Drive Bay 2. NVMe shown (8 SFF, 6SFF+2NVMe or 8 NVMe PCIe SSD optional) |
| ? | 8 SFF Drive Cage Bay |
| ? | Serial label pull tag |
| ? | Power On/Standby button and system power LED button |
| ? | Health LED |
| ? | NIC status |
| ? | UID button |
| ? | iLO Front Service Port |
| ? | USB 3.0 |
| ? | Box 3 |
| ? | Box 2 |
| ? | Box 1 |
| ? | Optional 2 SFF HDD, requires optional Universal Media bay |
| ? | Optional USB 2.0 (via Universal Media Bay) |
| ? | Optional front display port (Via Universal Media Bay) |
Figure 2 shows the back view.
Note:
| ? | Primary Riser. PCI Slots (Slots 1-3 top to bottom, riser shipped standard, not shown), optional 2SFF rear drives |
| ? | Secondary Riser. PCI Slots (Slots 4-6top to bottom, not shown, requires second riser card, and second processor). Showing optional 2 SFF rear |
| ? | Optional serial port |
| ? | Tertiary Riser (Slots 7-8). Optional rear 2 SFF HDD (supported in 24 SFF or 12 LFF front end) |
| ? | Power supply Power connection |
| ? | Power supply Power LED |
| ? | HPE Flexible Slot Power Supply bay 1 (800W shown) |
| ? | Power supply Power connection |
| ? | Power supply Power LED |
| ? | HPE Flexible Slot Power Supply bay 2 (800W shown) |
| ? | VGA connector |
| ? | Embedded 4 x 1GbE Network Adapter |
| ? | Dedicated iLO management port |
| ? | USB connectors 3.0 (2) |
| ? | Unit ID LED |
| ? | Optional FlexibleLOM ports (Shown: 4 x 1GbE) |
Parts Options
Table 2 shows the options of P19720-B21.
| Part Number | Description |
| Processors | |
| Intel Xeon-Bronze 3206R (1.9GHz/8-core/85W) FIO Processor Kit for HPE ProLiant DL380 Gen10 | |
| Intel Xeon-Silver 4210R (2.4GHz/10-core/100W) FIO Processor Kit for HPE ProLiant DL380 Gen10 | |
| Intel Xeon-Silver 4214R (2.4GHz/12-core/100W) FIO Processor Kit for HPE ProLiant DL380 Gen10 | |
| Intel Xeon-Bronze 3206R (1.9GHz/8-core/85W) FIO Processor Kit for HPE ProLiant DL360 Gen10 | |
| Intel Xeon-Silver 4210R (2.4GHz/10-core/100W) FIO Processor Kit for HPE ProLiant DL360 Gen10 | |
| Intel Xeon-Silver 4214R (2.4GHz/12-core/100W) FIO Processor Kit for HPE ProLiant DL360 Gen10 | |
| Memory | |
| HPE 16GB (1x16GB) Dual Rank x8 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit | |
| HPE 32GB (1x32GB) Dual Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit | |
| HPE 64GB (1x64GB) Quad Rank x4 DDR4-2933 CAS-21-21-21 Load Reduced Smart Memory Kit | |
| Hard Drive | |
| HPE 1.2TB SAS 12G Enterprise 10K SFF (2.5in) Sc 3yr Wty Digitally Signed Firmware HDD | |
| HPE 1.8TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty 512e Digitally Signed Firmware HDD | |
| HPE 900GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty Ds Digitally Signed Firmware HDD | |
| HPE 2.4TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty 512e Digitally Signed Firmware HDD | |
| HPE 600GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD | |
| HPE 240GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD | |
| HPE 480GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD | |
| HPE 960GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD | |
| HPE 1.92TB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD | |
| HPE 240GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD | |
| HPE 480GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD | |
| Power Supply | |
| HPE 500W FS Plat Ht Plg LH Pwr Sply Kit | |
| HPE 800W FS Plat Ht Plg LH Pwr Sply Kit | |
Compare to Similar Items
Table 3 shows the comparison.
| Part Number | P19720-B21 | ||
| Description | HPE DL380 Gen10 8LFF NC CTO Svr | HPE DL380 Gen10 12LFF NC CTO Svr | HPE DL380 Gen10 8SFF NC CTO Svr |
| Processors | Up to 2 Intel Xeon processors | Up to 2 Intel Xeon processors | Up to 2 Intel Xeon processors |
| Chipset | Intel C621 Chipset | Intel C621 Chipset | Intel C621 Chipset |
| Memory Type | HPE DDR4 SmartMemory, Registered (RDIMM), Load Reduced (LRDIMM) | HPE DDR4 SmartMemory, Registered (RDIMM), Load Reduced (LRDIMM) | HPE DDR4 SmartMemory, Registered (RDIMM), Load Reduced (LRDIMM) |
| Hard Drive | 8 LFF | 12 LFF | 8 SFF |
