HuaweiТs FusionServer RH5885H V3 is a next-generation 4U, 4-socket rack server that supports IntelЃ XeonЃ E7 v3 and v4 series processors with up to 96 cores and a 6 TB memory capacity. It is ideal for mission-critical applications, such as databases, Enterprise Resource Planning (ERP), Business Intelligence (BI) analytics, Big Data, and virtualization. Get high reliability and better performance with HuaweiТs RH5885H V3 rack server.
Quick Specs

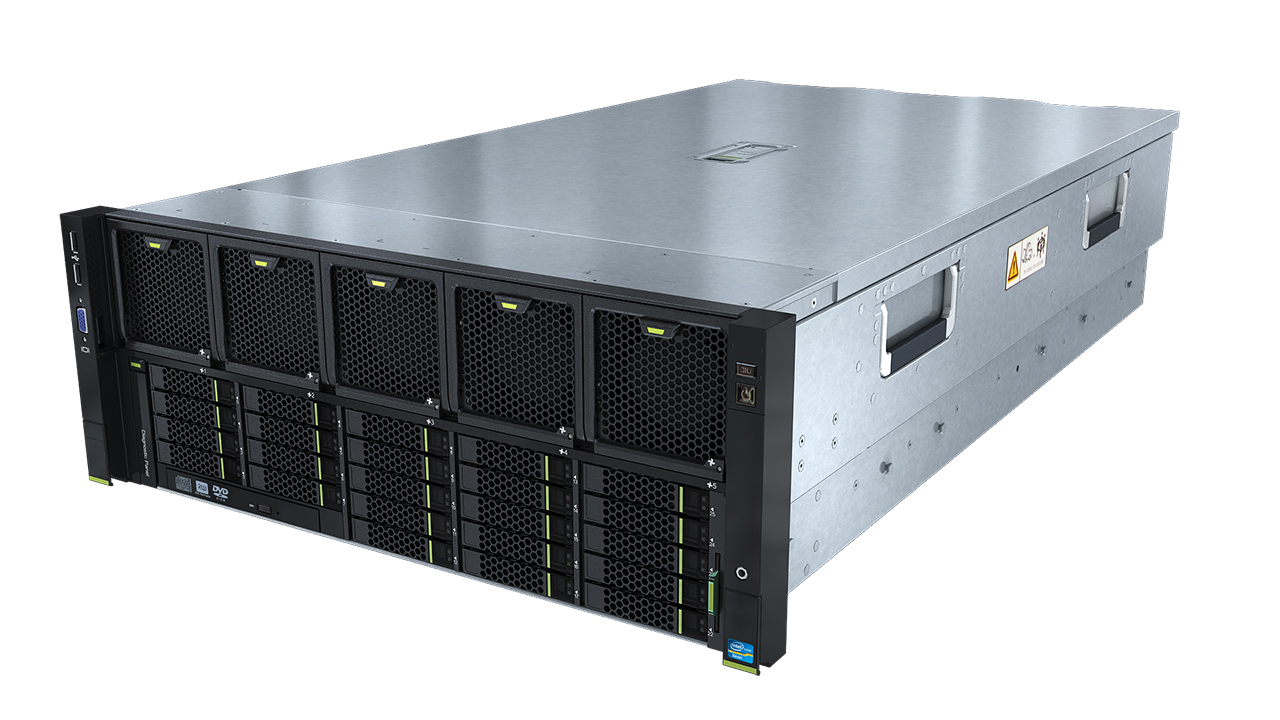

Figure 1 shows the appearance of Huawei FusionServer RH5885H V3 Rack Server.
Table 1 shows the Quick Specs.
| Product | Huawei FusionServer RH5885H V3 Rack Server |
| Form factor | 4U rack server |
| Number of processors | 2 or 4 |
| Processor model | IntelЃ XeonЃ E7-4800 v3/v4 or E7-8800 v3/v4 processors, with an L3 cache capacity of 60 MB maximum |
| Number of DIMM slots | 96 DIMMs, up to 6 TB (using 64 GB DIMMs) |
| Memory | 96 DIMMs |
| Internal Storage | 8 or 23 x 2.5-inch SAS/SATA HDDs or SSDs, or 8 x 2.5-inch SAS/SATA HDDs + 4 x 2.5-inch NVMes |
| RAID | ЈRAID 0, 1, 10, 5, 50, 6, or 60 ЈConfigured with a supercapacitor or Battery Backup Unit (BBU) for power-off protection (optional) |
| LOM Network Ports | 2 GE or 4 GE ports, or 2 x 10 GE ports |
| PCIe Expansion | Up to 17 PCIe slots (including one for RAID) |
| Fan Modules | 5 hot-swappable fan modules in N+1 redundancy mode |
| Power Supply Units | Hot-swappable PSUs in 1+1 or 2+2 redundancy mode |
| Management | ЈProvides independent ports; supports standard management interfaces, such as SNMP and IPMI; provides GUI, remote KVM, virtual media, SOL, Predictive Failure Analysis (PFA), intelligent power supply, remote control, and hardware monitoring ЈSupports Huawei eSight management software and integration with third-party management systems, such as VMware vCenter, Microsoft System Center, and Nagios |
| Operating Temperature | 5?C to 40?C (41?F to 104?F), ASHRAE Class A3 compliant |
| Dimensions (H x W x D) | 447 mm x 790 mm x 175 mm (17.60 in. x 31.10 in. x 6.89 in.) |
Product Details
Figure 2 shows the front panel of Huawei FusionServer RH5885H V3 Rack Server.
Note:
| ? | Fan modules (numbered 1 to 5 from left to right) | ? | Network port link status indicators |
| ? | Health indicator | ? | UID button/indicator |
| ? | Power button/indicator | ? | Fan status indicator |
| ? | Label (including the ESN label) | ? | Hard disk fault indicator |
| ? | Hard disk activity indicator | ? | Hard disks |
| ? | DVD drive | ? | LED diagnosis panel |
| ? | VGA port | ? | USB port 2 |
| ? | USB port 1 | - | - |
Figure 3 shows the back panel of Huawei FusionServer RH5885H V3 Rack Server.
Note:
| ? | PCIe card status indicator (hot-swappable PCIe card) | ? | PCIe card power indicator (hot-swappable PCIe card) |
| ? | PCIe card hot swap button (hot-swappable PCIe card) | ? | PCIe riser card 1 (supporting non-hot-swappable PCIe cards) |
| ? | LOM | ? | UID indicator |
| ? | Serial port | ? | VGA port |
| ? | iMana 200 or iBMC management network port | ? | USB port |
| ? | PCIe riser card 2 (supporting non-hot-swappable PCIe cards) | ? | PSU (in 2-PSU mode, PSU 1 to PSU 2 from left to right; in 4-PSU mode, PSU 1 to PSU 4 from left to right) |
| ? | PSU indicator | ? | PCIe riser card 3 (supporting hot-swappable PCIe cards) |
Compare to Similar Items
Table 3 shows the comparison of Huawei FusionServer RH5885H V3 Rack Server, Huawei FusionServer RH5885 V3 Rack Server and Huawei FusionServer 5288 V3 rack server.
| Product | Huawei FusionServer RH5885H V3 Rack Server | ||
| Form factor | 4U rack server | 4U rack server | 4 U rack server |
| Number of processors | 2 or 4 | 2 or 4 | One or two |
| Processor model | IntelЃ XeonЃ E7-4800 v3/v4 or E7-8800 v3/v4 processors, with an L3 cache capacity of 60 MB maximum | IntelЃ XeonЃ E7-4800 v3/v4 or E7-8800 v3/v4 processors, with an L3 cache capacity of 60 MB maximum | IntelЃ XeonЃ E5-2600 v3/v4 series processors |
| Number of DIMM slots | 96 DIMMs, up to 6 TB (using 64 GB DIMMs) | 48 DIMMs, up to 3 TB (64 GB DIMMs) | 8 or 16 slots for DDR4 RDIMMs or LRDIMMs |
| Memory | 96 DIMMs | 48 DIMMs | 16 DDR4 RDIMMs/LRDIMMs |
| Internal Storage | 8 or 23 x 2.5-inch SAS/SATA HDDs or SSDs, or 8 x 2.5-inch SAS/SATA HDDs + 4 x 2.5-inch NVMes | 8 or 23 x 2.5-inch SAS/SATA HDDs or SSDs, or 8 x 2.5-inch SAS/SATA HDDs + 4 x 2.5-inch NVMes | 5288 V3 with 40 hard disks Rear: Ј16 x 3.5-inch SAS/SATA HDDsЈ14 x 3.5-inch SAS/SATA HDDs + 2 x 2.5-inch SSDs or SAS/SATA HDDs Ј12 x 3.5-inch SAS/SATA HDDs + 4 x 2.5-inch SSDs or SAS/SATA HDDs
Rear: Ј4 x 3.5-inch SAS/SATA HDDsЈ2 x 3.5-inch SAS/SATA HDDs + 2 x 2.5-inch SSDs or SAS/SATA HDDs Ј4 x 2.5-inch SSDs or SAS/SATA HDDs |
