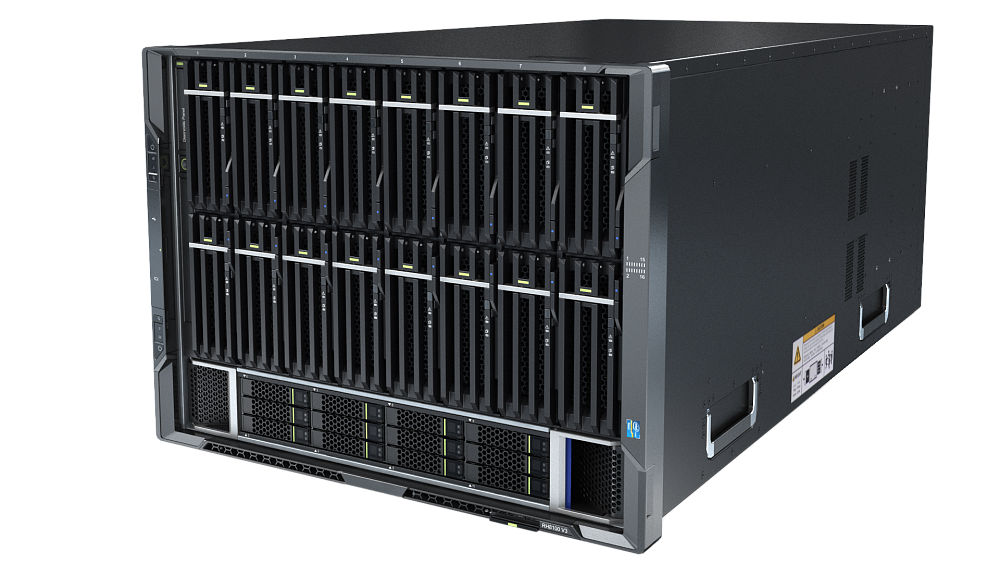

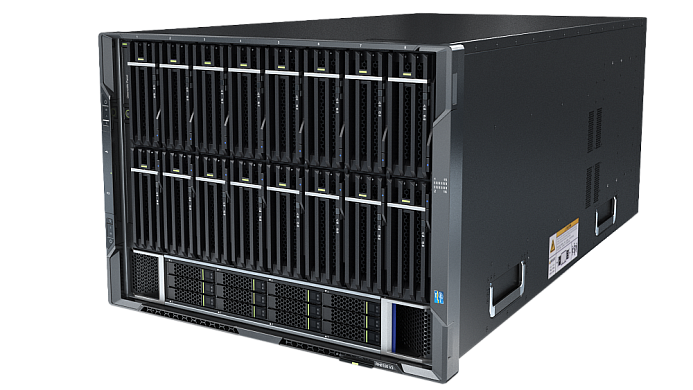

Сервер Huawei FusionServer RH8100 V3 Rack Server
Почему нет цен?
Уточнить ценуГарантия до 5 лет
Диагностика перед отправкой
С нами выгодно и удобно!
- Поддержка персонального менеджера
- Возмещение НДС до 20%
- Онлайн-кабинет гарантийного сервиса
Как купить?
Раз, два и все делаРассчитаем стоимость
Присылайте спецификацию для подбора и расчета стоимости оборудования
Привезём и подключим
Подключим и настроим оборудование в вашем офисе или ЦОДе
Характеристики
Соберите свою конфигурацию
Отсрочка платежа
В зависимости от суммы поставляемого товара можем предоставить отсрочку платежа на срок от 5 до 90 дней. Условия отсрочки платежа рассматриваются индивидуально. Подробную информацию уточняйте у вашего менеджера.
Первый платеж
Второй платеж
Первый платеж
Второй платеж
Первый платеж
Второй платеж
Описание
Huawei new-generation FusionServer RH8100 V3 flagship rack server delivers industry-leading architecture to provide robust computing performance and extensibility, it is ideal for mission-critical application with superb performance. This 8U rack server supports up to 8 Intel Xeon E7-8800 series processors, 192 DIMMs, 24*2.5Ф SAS/SATA disks, 18 PCIe 3.0 slots, and 2 LOM mezzanine cards, 8 hot-swappable fan modules in N+ 1 redundancy and 4 hot-swappable power modules, the modularity design and fault diagnosis LCD touch panel provide simple and tool-free maintenance. Huawei Hi11710 BMC chip build-in provides comprehensive remote device management, monitoring, configuration, and fault locating and analysis.
Quick Specs
Table 1 shows the Quick Specs.
Product | Huawei FusionServer RH8100 V3 Rack Server |
Form factor | 8U rack server |
Number of processors | 8 or 4 |
Processor model | IntelЃ XeonЃ E7-8800 v3/v4 series processors |
Memory | 192 DIMMs with up to 12 TB memory capacity |
Internal Storage | Hard disk configurations: 8 x 2.5-inch SAS/SATA HDDs, SSDs or NVMes 12 x 2.5-inch SAS/SATA HDDs or SSDs 24 x 2.5-inch SAS/SATA HDDs or SSDs |
RAID | RAID 0, 1, 10, 5, 50, 6, or 60 |
LOM Network Ports | 2 LOM mezzanine cards, with up to 8 GE ports or 4 x 10 GE ports |
PCIe Expansion | Up to 18 PCIe 3.0 slots (2 for RAID) |
Fan Modules | 8 hot-swappable fan modules in N+1 redundancy mode |
Power Supply Units | 4 hot-swappable PSUs in 2+2 redundancy mode 2,000W or 3,000W AC PSUs 2,500W DC PSUs |
Management | Provides independent ports; supports standard management interfaces, such as SNMP and IPMI; provides GUI, remote KVM, virtual media, SOL, Predictive Failure Analysis (PFA), intelligent power supply, remote control, and hardware monitoring; integrates a touchscreen LCD diagnosis panel Supports Huawei eSight management software and integration with third-party management systems, such as VMware vCenter and Microsoft System Center |
Operating Temperature | 5?C to 40?C (41?F to 104?F), ASHRAE Class A3 compliant |
Product Details
Figure 1 shows the appearance of Huawei FusionServer RH8100 V3 Rack Server. The RH8100 V3 provides three front I/O modules:
Figure 1-1 shows the RH8100 V3 with the FM-A.
The front I/O module of model A (FM-A) provides performance-balanced configuration. The FM-A supports a maximum of 12 SAS HDDs, SATA HDDs, or SSDs, two RAID controller cards, and six standard PCIe slots on PCIe riser cards. The PCIe slots do not support standard cards that need to connect to external cables, such as, NICs, HBAs, IBs. You can install PCIe SSDs and GPUs in the slots.
Figure 1-2 shows the RH8100 V3 with the FM-B.
The front I/O module of model B (FM-B) provides storage-enhanced configuration. The FM-B supports a maximum of 24 SAS HDDs, SATA HDDs, or SSDs and two RAID controller cards. It does not support standard PCIe slots.
Figure 1-3 shows the RH8100 V3 with the FM-C.
The front I/O module of model C (FM-C) provides low-level configuration. The FM-C supports a maximum of eight SAS HDDs, SATA HDDs, or SSDs and two RAID controller cards. It does not support standard PCIe slots.
Figure 1-4 shows the RH8100 V3 with the FM-D.
The front I/O module of model D (FM-D) supports NVMe PCIe SSDs. The FM-D supports a maximum of eight SAS HDDs, SATA HDDs, SSDs, or NVMe PCIe SSDs and two RAID controller cards, but does not support standard PCIe slots. NVMe PCIe SSDs do not support RAID. If NVMe PCIe SSDs are installed in all disk slots, no RAID controller cards need to be configured on the server.
Figure 2 shows the front panel of Huawei FusionServer RH8100 V3 Rack Server.
Figure 2-1 RH8100 V3 front panel with the FM-A.
Note:
1 | Compute modules 1 to 8 from left to right | 2 | Memory board button/status indicator |
3 | Memory board ATTN indicator | 4 | Compute module status indicator |
5 | Label (including the ESN label) | 6 | Hard disk fault indicator |
7 | Hard disk active indicator | 8 | Hard disk |
9 | FM-A | 10 | Secondary power button/indicator |
11 | Secondary VGA indicator | 12 | VGA port |
13 | USB port 2 | 14 | USB port 1 |
15 | DVD | 16 | Primary UID button/indicator |
17 | Primary power button/indicator | 18 | LCD |
Figure 2-2 RH8100 V3 front panel with the FM-B
? | FM-B | ? | HDD drawer |
? | HDD LED board (12 hard disk status indicators on the board) | ? | Label (including the ESN label) |
Figure 2-3 RH8100 V3 front panel with the FM-C.
? | Label (including the ESN label) | ? | Hard disk fault indicator |
? | Hard disk active indicator | ? | Hard disk |
? | FM-C | - | - |
Figure 2-4 RH8100 V3 front panel with the FM-D.
? | Hard disk fault indicator | ? | Hard disk active indicator |
? | Hard disk | ? | FM-D |
Figure 3 shows the back panel of Huawei FusionServer RH8100 V3 Rack Server.
Note:
? | UID indicator | ? | Fan status indicator |
? | High-performance Fusion Console-2 (HFC-2) | ? | Power supply unit (PSU) status indicator |
? | Network interface card (NIC) 2 | ? | PCIe card 10 (hot-swappable) |
? | PCIe card 9 (hot-swappable) | ? | PCIe card 8 |
? | PCIe card 7 | ? | PCIe card 6 |
? | PCIe card 5 | ? | PCIe card 4 |
? | PCIe card 3 | ? | PCIe card 2 (hot-swappable) |
? | PCIe card 1 (hot-swappable) | ? | PCIe card status indicator |
? | PCIe card power indicator | ? | PCIe card hot swap button |
19 | Network port data transmission status indicator (The 82599 NIC (BC11FXEB) indicator is used as an example.) | 20 | NIC 1 |
21 | HFC-1 | 22 | VGA port |
23 | RJ45 serial port | 24 | iBMC management network port |
25 | USB port |
|
|
Compare to Similar Items
Table 3 shows the comparison of Huawei FusionServer RH8100 V3 Rack Server and Huawei FusionServer RH5885H V3 Rack Server.
Product | Huawei FusionServer RH8100 V3 Rack Server | |
Form factor | 8U rack server | 4U rack server |
Number of processors | 8 or 4 | 2 or 4 |
Processor model | IntelЃ XeonЃ E7-8800 v3/v4 series processors | IntelЃ XeonЃ E7-4800 v3/v4 or E7-8800 v3/v4 processors, with an L3 cache capacity of 60 MB maximum |
Memory | 192 DIMMs with up to 12 TB memory capacity | 96 DIMMs |
Internal Storage | Hard disk configurations: 8 x 2.5-inch SAS/SATA HDDs, SSDs or NVMes 12 x 2.5-inch SAS/SATA HDDs or SSDs 24 x 2.5-inch SAS/SATA HDDs or SSDs | 8 or 23 x 2.5-inch SAS/SATA HDDs or SSDs, or 8 x 2.5-inch SAS/SATA HDDs + 4 x 2.5-inch NVMes |
