Коммутатор Huawei S5730 S5730-68C-PWR-SI-AC

Артикул: S5730-68C-PWR-SI-AC

В наличии

Коммутатор Huawei S5730 S5730-68C-PWR-SI-AC

Настройка коммутатора Huawei Запросить сертификат

Прямой импорт оборудования
из Китая и ОАЭ без посредников

S5730-68C-PWR-SI Bundle (48 x Ethernet 10/100/1,000 ports, 4 x 10 Gig SFP+, PoE+, with 1 interface slot, with 500W AC power supply)

Почему нет цен?

Уточнить цену

Доставка по РФ

Техническая поддержка

Гарантия до 5 лет

Диагностика перед отправкой

Лизинг от 1.5 млн рублей для компаний из РФ

С нами выгодно и удобно!

Поддержка персонального менеджера
Партнёрские скидки до 70%
Онлайн-кабинет гарантийного сервиса

Как купить?

Раз, два и все дела

Рассчитаем стоимость

Присылайте спецификацию для подбора и расчета стоимости оборудования

1Раз

Привезём и подключим

Подключим и настроим оборудование в вашем офисе или ЦОДе

2Два

Характеристики

Производитель

Huawei

Модель

S5730-68C-PWR-SI-AC - Huawei S5730 Series Switches

Артикул

S5730-68C-PWR-SI-AC

Отсрочка платежа

В зависимости от суммы поставляемого товара можем предоставить отсрочку платежа на срок от 5 до 90 дней. Условия отсрочки платежа рассматриваются индивидуально. Подробную информацию уточняйте у вашего менеджера.

70%
Первый платеж

30%
Второй платеж

50%
Первый платеж

50%
Второй платеж

0%
Первый платеж

100%
Второй платеж

Описание

S5730-68C-PWR-SI-AC is a Huawei S5730-68C-PWR-SI Bundle, providing 48 x Ethernet 10/100/1,000 ports, 4 x 10 Gig SFP+, PoE+, with 1 interface slot, and 500W AC power supply. Huawei S5730-SI series switches are next-generation standard gigabit Layer 3 Ethernet switches that provide flexible full gigabit access and cost-effective fixed GE ports and 10 GE uplink ports, meanwhile can provide 40 GE uplink ports with an interface card. The S5730-SI was developed based on next-generation high-performing hardware and the Huawei Versatile Routing Platform (VRP). The S5730-SI supports simplified Operations and Maintenance (O&M), intelligent Stack (iStack), flexible Ethernet networking. It also provides enhanced Layer 3 features and mature IPv6 features. The S5730-SI can be used as an access or aggregation switch on a campus network or as an access switch in a data center.

Quick Spec

Table 1 shows the quick spec.

SKU	S5730-68C-PWR-SI-AC
Ports	48 PoE+ 10/100/1000BASE-T ports, 4 x 10 Gig SFP+
Slots	One interface slot
Power Supply	One 500W AC power supply equipped by default
Forwarding performance	240 Mpps
Switching capacity	680 Gbit/s
PoE Supported	PoE+ Supported
Dimensions (W x D x H)	442 mm x 420 mm x 44.4 mm

Product Details

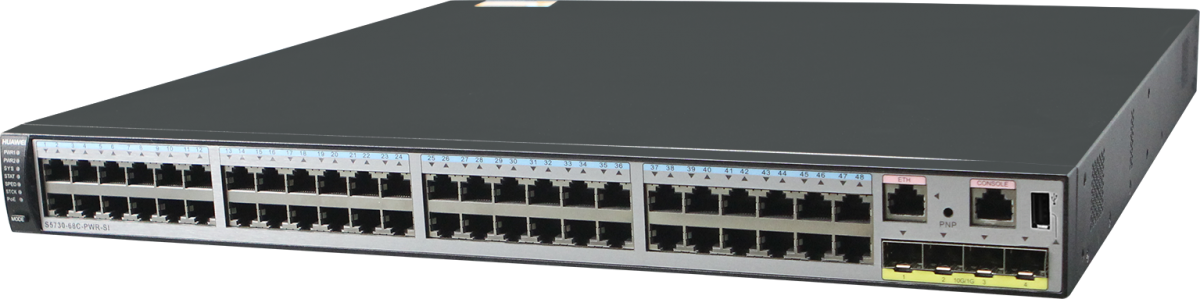

Figure 1 shows the front view of S5730-68C-PWR-SI-AC.

Note:

?	One ETH management port	?	One USB port
?	PNP button	?	Four 10GE SFP+ ports
?	One console port	?	48 PoE+ 10/100/1000BASE-T ports

Figure 2 shows the back view of S5730-68C-PWR-SI-AC.

Note:

?	Ground screw	?	Fan slot
?	ESN label	?	Power module slot 2
?	Rear card slot	?	Power module slot 1

The Options

Table 2 shows the recommended optional accessories.

Model	Description
eSFP-GE-SX-MM850	Optical Transceiver, eSFP, GE, Multi-mode Module (850nm,0.5km, LC)
SFP-GE-LX-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module (1310nm,10km, LC)
S-SFP-GE-LH40-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module (1310nm,40km, LC)
S-SFP-GE-LH40-SM1550	Optical Transceiver, eSFP, GE, Single-mode Module (1550nm,40km, LC)
S-SFP-GE-LH80-SM1550	Optical Transceiver, eSFP, GE, Single-mode Module (1550nm,80km, LC)
eSFP-GE-ZX100-SM1550	eSFP, GE, Single-mode Module (1550nm,100km, LC)
SFP-1000BaseT	1000BASE-T (RJ45) SFP Electrical Module, Auto Negotiate,100m
SFP-10G-USR	10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm,0.1km, LC)
OSXD22N00	Optical Transceiver, SFP+, 10G, Multi-mode Module (1310nm,0.22km, LC, LRM)
OMXD30000	Huawei Optical Transceiver OMXD30000, SFP+,10G, Multi-mode Module (850nm,0.3km, LC)
SFP-10G-iLR	Optical Transceiver, SFP+,9.8G, Single-mode Module (1310nm,1.4km, LC)
OSX010000	Optical Transceiver, SFP+,10G, Single-mode Module (1310nm,10km, LC)
OSX040N01	SFP+, 10G, Single-mode Module (1550nm,40km, LC)
SFP-10G-ER-1310	Optical Transceiver, SFP+,10G, Single-mode Module (1310nm,40km, LC)
SFP-10G-CU3M	Huawei SFP+,10G, High Speed Direct-attach Cables,3m, SFP+20M, CC2P0.254B(S), SFP+20M, Used indoor

Compare to Similar Items

Table 3 shows the comparison.

Item	S5730-48C-SI-AC	S5730-48C-PWR-SI-AC	S5730-68C-SI-AC	S5730-68C-PWR-SI-AC	S5730-68C-PWR-SI
Fixed Ports	24 x 10/100/1,000 Base-T, 8 x 10 Gig SFP+	24 x 10/100/1,000 Base-T, 8 x 10 Gig SFP+	48 x 10/100/1,000 Base-T, 4 x 10 Gig SFP+	48 x 10/100/1,000 Base-T, 4 x 10 Gig SFP+	48 x 10/100/1,000 Base-T, 4 x 10 Gig SFP+
MAC Address Table	32K MAC	32K MAC	32K MAC	32K MAC	32K MAC
Dimensions (W x D x H)	442 mm x 420 mm x 44.4 mm	442 mm x 420 mm x 44.4 mm	442 mm x 420 mm x 44.4 mm	442 mm x 420 mm x 44.4 mm	442 mm x 420 mm x 44.4 mm
Slot	One extended slot that supports an interface card: 4 x 40 GE QSFP+ interface card	One extended slot that supports an interface card: 4 x 40 GE QSFP+ interface card	One extended slot that supports an interface card: 4 x 40 GE QSFP+ interface card	One extended slot that supports an interface card: 4 x 40 GE QSFP+ interface card	One extended slot that supports an interface card: 4 x 40 GE QSFP+ interface card
