The UDM Pro is an all-in-one networking console that runs every UniFi OS application, like Network and Protect.

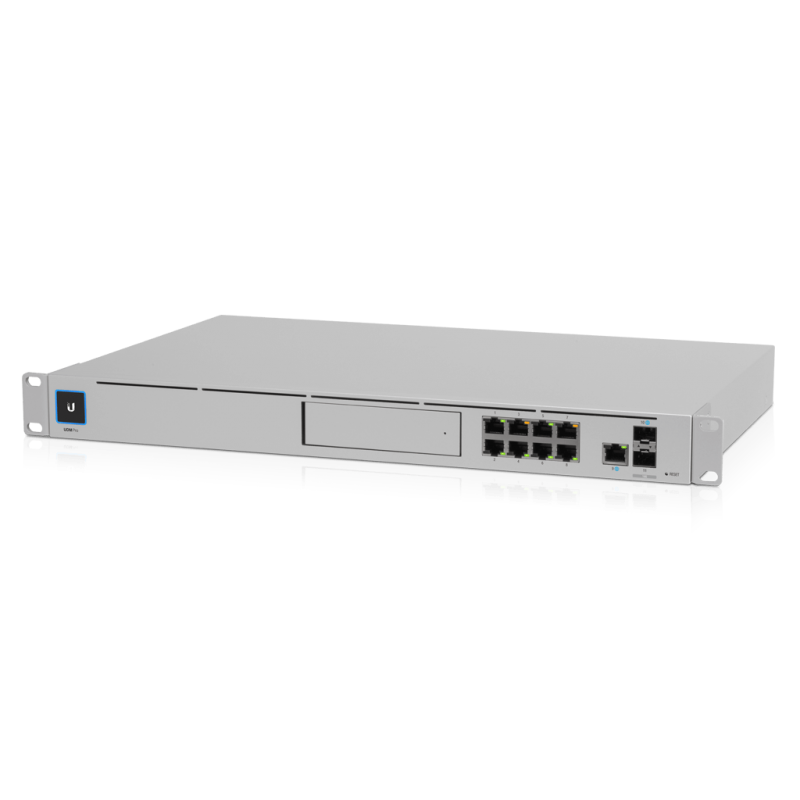

Figure 1 shows the appearance of UDM-Pro.
Table 1 shows the Quick Specs.
| Product Code | UDM-Pro |
| Interfaces
| (8) 10/100/1000 RJ45 LAN Ports (1) 10/100/1000 RJ45 WAN Port (1) 1/10G SFP+ LAN Port (1) 1/10G SFP+ WAN Port |
| Management Interfaces | Ethernet In-Band (1) Bluetooth BLE |
| Max. Power Consumption: | 33W |
| Voltage Range: | 100 to 240VAC |
| Power Method: | (1) Universal AC Input, 100-240VAC, 50/60 Hz |
| Width x Height x Depth:
| 442.4 x 43.7 x 285.6 mm (17.42 x 1.72 x 11.24") |
Figure 2 shows the front panel of UDM-Pro.
Figure 3 shows the back panel of UDM-Pro.
UDM-Pro provides these features:
Table 2 shows the comparison of UDM-Pro.
| Module | UDM-Pro | |
| Power Supply: | Internal 50W/12V | Internal AC/DC Power Adapter, 60W (24V, 2.5A) |
| Max. Power Consumption: | 33W | 40W |
| Processor: | Quad ARM Cortex-A57 Core at 1.7 GHz | Dual-Core 1 GHz, MIPS64 with Hardware Acceleration for Packet Processing |
| Operating Temperature: | -10° to 40° C (14° to 104° F) | ?10 to 45° C (14 to 113° F) |
| Operating Humidity: | 5 to 95% Noncondensing | 10 to 90% Noncondensing |
